Product introduction

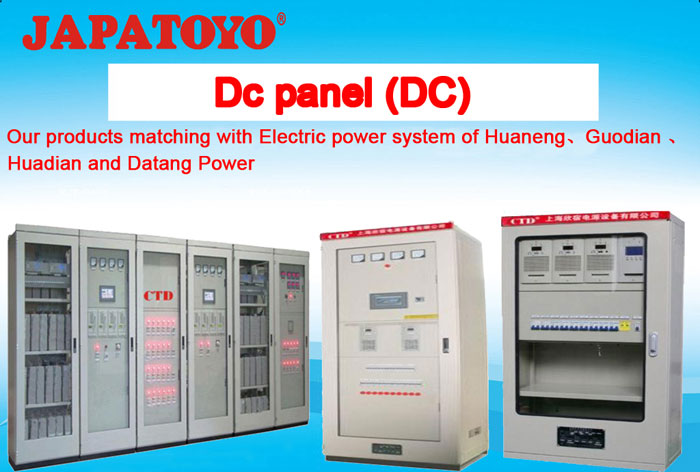

CTD intelligent dc power source screen design with reference to the ministry 《DL/T5044-2004\》, 《JB / 5777.2-2002》 and 《JB / 5777.3-2002》 technical standards related to production, can meet reliable transmission and distribution system is normal or abnormal condition of dc control power supplies and high and low voltage switch points of switching power supply requirements. It is widely used in the variable sub-station under 500 kv and below 600000 KW dc operation power supply requirements of power plants.

Using the environment

l Either altitude height is not more than 1000 meters;

l Environment temperature -10～＋50℃;

l Daily average relative humidity is not more than 95%, monthly average relative humidity 50%-100％;

l No strong vibration and impact, no strong electromagnetic interference;    l

l No serious dust, explosion danger surrounding medium, a corrosive action on metals, and destroyed the harmful gas of insulation, conductive particles and the mold;

l Vertical gradient is not more than 5 degrees.

Technical indicators

l Three-phase ac input voltage of 380 v (+ 15%, 10%), frequency 50 HZ;

l Control bus dc output voltage: 110 v;

l Control bus dc output current rating: a 50;

l Maintenance-free sealed lead-acid battery of battery capacity rating: 100 ah.

l Dc panel instantaneous output current value in 0.5 seconds 2 c: 200 busbar voltage stability control plus or minus 2% or less;

l Control bus voltage ripple coefficient of plus or minus 0.1% or less;

lConstant current precision of + / - 0.5% or less;

lSwitch busbar voltage + 15%, or less - 10%;

lThe time flow output current (A) : 1.1 IN.

lEfficiency of 90% or more;

lPower factor > 0.92;

 lResponse speed: 0.2 ms;

 lMachine noise 50 db or less;

 lFlow way: automatic flow;

 lHarmonic: no interference.
